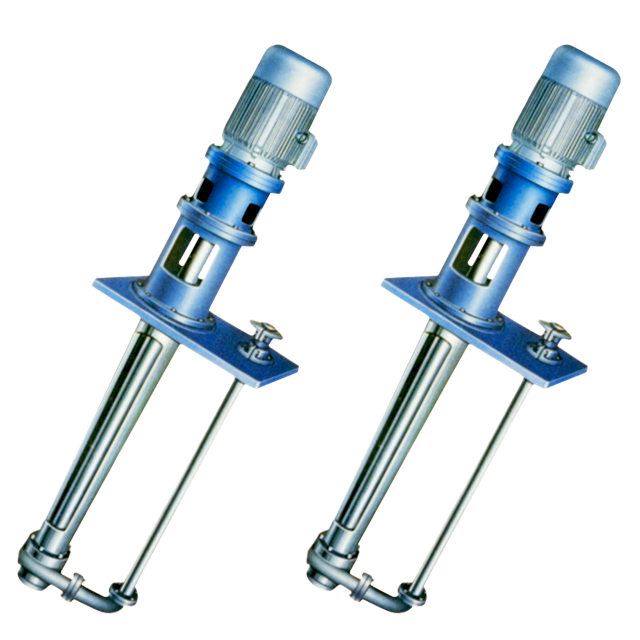

LJYA slurry pump

LJYA series pump is single stage vertical centrifugal cantilever sump pump, the bearings are not in contact with liquid, suitable for conveying the particles containing less than 35% less than 0.2mm solid particles, corrosive liquid used in petroleum, chemical, fertilizer , paper industry, steel mills and water and other industrial sectors. LJYB type suitable for conveying solid particles, viscosity similar to water. This series performance range: flow rate 7 ~ 380m³/h, head of 10 ~ 40m. According to the medium of the pump corrosion, user selectable flow material of main parts used part of the material, pump contact with the media have OCr18Ni9Ti, 1Cr18Ni12Mo2Ti, 1Cr18Ni12Mo2Ti, OCr18NiMo3Ti, J-1 alloy, CD4MCu, 20Cb3 other materials. This series of pumps cantilever length (refer to the bottom center of the impeller) is 1-1.8m, according to user need to select when ordering.

Overview

LJYA series pump is single stage vertical centrifugal cantilever sump pump, the bearings are not in contact with liquid, suitable for conveying the particles containing less than 35% less than 0.2mm solid particles, corrosive liquid used in petroleum, chemical, fertilizer , paper industry, steel mills and water and other industrial sectors. LJYB type suitable for conveying solid particles, viscosity similar to water.

This series performance range: flow rate 7 ~ 380m³/h, head of 10 ~ 40m.

According to the medium of the pump corrosion, user selectable flow material of main parts used part of the material, pump contact with the media have OCr18Ni9Ti, 1Cr18Ni12Mo2Ti, 1Cr18Ni12Mo2Ti, OCr18NiMo3Ti, J-1 alloy, CD4MCu, 20Cb3 other materials.

This series of pumps cantilever length (refer to the bottom center of the impeller) is 1-1.8m, according to user need to select when ordering.

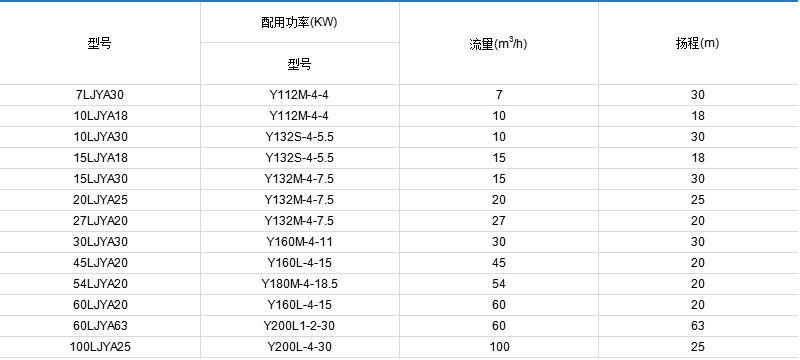

Parameters
